Printed Circuit Board Assembly
Let Us Handle the Complexities of Production While You Focus on Growth!
We take the stress out of manufacturing your Printed Circuit Board Assemblies. Whether you need surface mount technology or through-hole, our expert team delivers precision and efficiency at every stage. With advanced manufacturing capabilities and strict quality standards, we bring your electronic products to life—so you can stay focused on innovation.

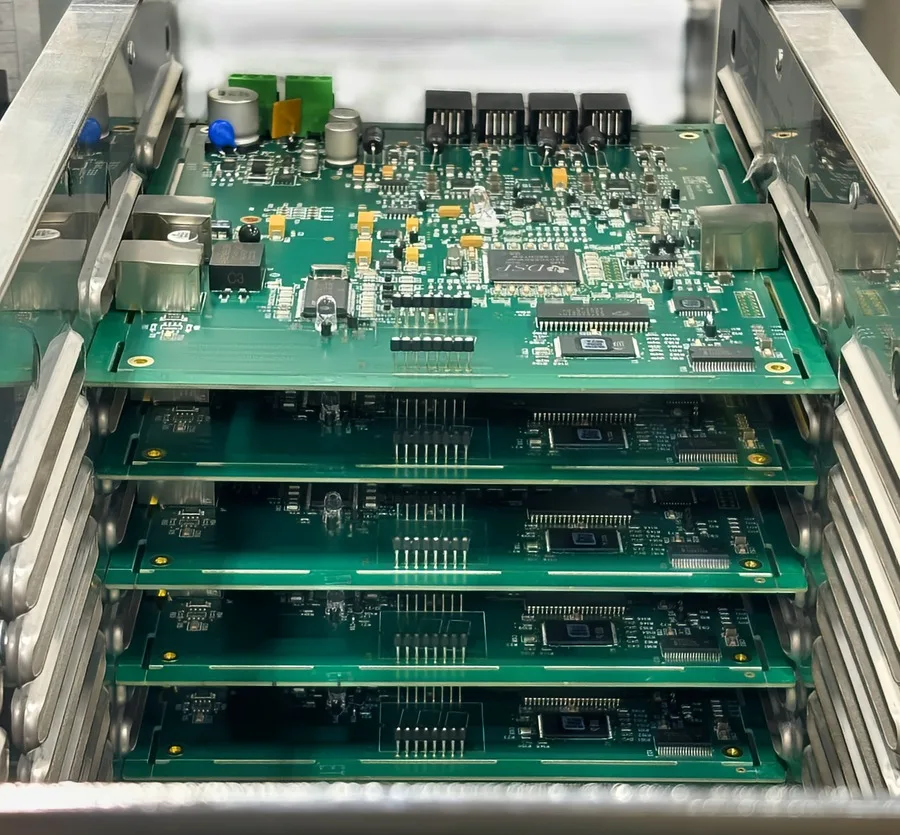

SMT Assembly
Surface Mount Technology (SMT) is an advanced, automated process for placing, mounting, and soldering electronic components directly onto a printed circuit board (PCB). Unlike traditional hardwiring methods, SMT components are engineered for direct mounting, allowing for efficient assembly and compact, high-performance designs.
We adhere to the highest standards, ensuring compliance with IPC-A-610 Class 2 and Class 3 (when required) to deliver exceptional quality and reliability. Specializing in RoHS compliance, we prioritize both performance and environmental responsibility. Our cutting-edge SMT lines accommodate PCB sizes up to 20” x 18”, with each board undergoing meticulous inspection processes, including Automated Optical Inspection (AOI), Solder Paste Inspection (SPI), and X-Ray analysis, to guarantee precision and dependability.
Assembly Capabilities:
Double sided
Rigid and Flex Circuits
Max PCB 20(L)x18(W)
Coplanarity Recognition
SPI (Solder Paste Inspection)
AOI (Automated Optical Inspection)
AXI (Automated X-Ray inspection)
BGA placement, inspection, and rework
Components Capabilities:
01005 – BGA’s (0.5 mm pitch)
Odd formed parts (Large connectors, Pem-Nuts)
Our Process Capabilities Include:
- Multiple SMT Production Lines: Designed to handle small, medium, and large-scale production.
- High-Speed and Flexible Assembly: Two state-of-the-art, high-speed surface mount assembly lines with high-accuracy pick-and-place systems.
- Advanced Component Placement: Supports components as small as 01005, fine-pitch, high-density PCBs, as well as BGA and FBGA placement.
- Flexible Flux Options: No-clean and water-soluble flux options tailored to your requirements.
- Lead-Free Solutions: Fully equipped for RoHS-compliant, lead-free wave soldering.
Whether you need pilot production runs or full-scale manufacturing, we provide flexible, tailored solutions to meet your unique needs. We are committed to delivering assemblies that meet the highest industry standards, enhancing the performance, reliability, and success of your product.
Through-Hole Assembly
By partnering with Tecnova Electronics, you gain access to our years of experience and a team of skilled professionals dedicated to delivering precise and efficient through-hole assembly. Using wave and selective solder equipment and adhering to strict quality standards, we ensure your circuit boards are assembled with unmatched accuracy and reliability, perfectly tailored to meet your project’s unique requirements.
Conformal Coating
Conformal coating is a protective technique that applies a thin, specialized layer over circuit boards to shield them from environmental challenges and improved electrical and thermal characteristics.
Tecnova Electronics utilizes both silicone and acrylic based coatings.
We bring unmatched expertise to the conformal coating process, by using advanced materials and precise application methods to meet the unique requirements of each project. By expertly conformal coating your circuit boards, Tecnova Electronics delivers durable protection and superior performance, ensuring your electronic systems remain reliable and resilient, even in the most challenging conditions.
Room Temperature Vulcanizing
Room Temperature Vulcanizing (RTV) is a silicone-based material designed to form durable, flexible seals and coatings for electronic components. Unlike high-temperature vulcanizing techniques, RTV cures at room temperature, making it perfect for delicate electronic applications where heat could cause damage.
Types of RTV:
Non-corrosive electronic grade
Self-leveling
Variety of colors including black, white, and clear.
We apply our extensive expertise in electronic manufacturing to provide precise and reliable RTV solutions tailored to your project’s specific needs. Using advanced techniques and maintaining a strong commitment to quality, we ensure your circuit boards are expertly RTV-sealed, delivering exceptional protection and long-term reliability.
We understand the importance of protecting the integrity of a product that carries your name. At Tecnova Electronics, we approach every assembly with the same care, dedication, and precision as if it were our own.
